| Model number | TU-8888 |
|---|

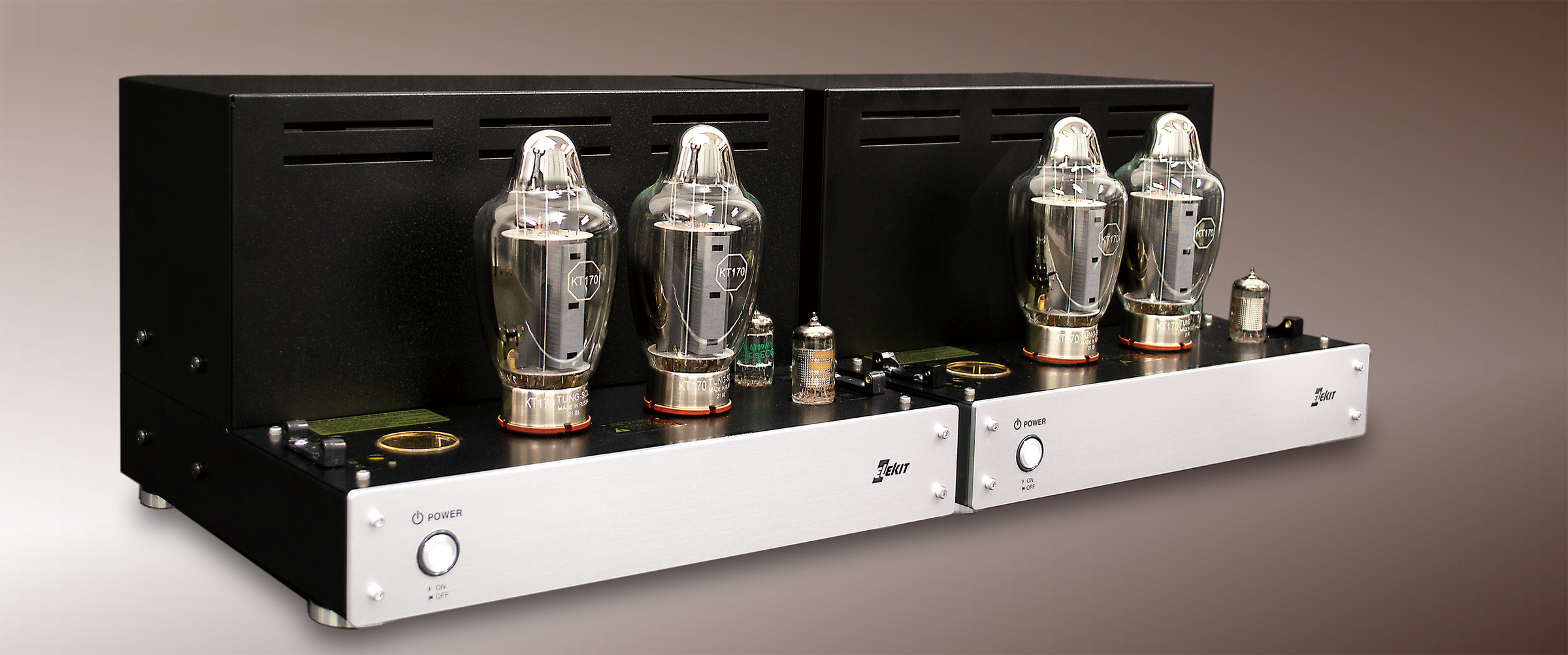

TU-8888 Monoblock PP Power Amp Kit is a push-pull power amplifier which features Monoclock Ultra-linear connection.
The design supports use of various types of beam output tubes, such as octal-base (US 8-pin) beam tubes, from KT88 to KT170.
The output transformer is the LL3733, specifically designed and manufactured by the highly regarded Swedish firm, Lundahl Transformers.
The manner of speaker connection ensures the speaker output is isolated from both the amplifier circuit and the chassis ground.
An adjustable input level control is provided at the rear pf the chassis.
Multiple protective measures are employed using fuses and PTCs.
In TU-8888 the bias is set manually, and easy adjustment made using the meter provided.
Coupling capacitors can have a big effect on the sound quality. For the TU-8888, high quality conductive polymer electrolytic capacitors and polypropylene film capacitors are provided.
However, exchanging for other coupling capacitors is also possible.

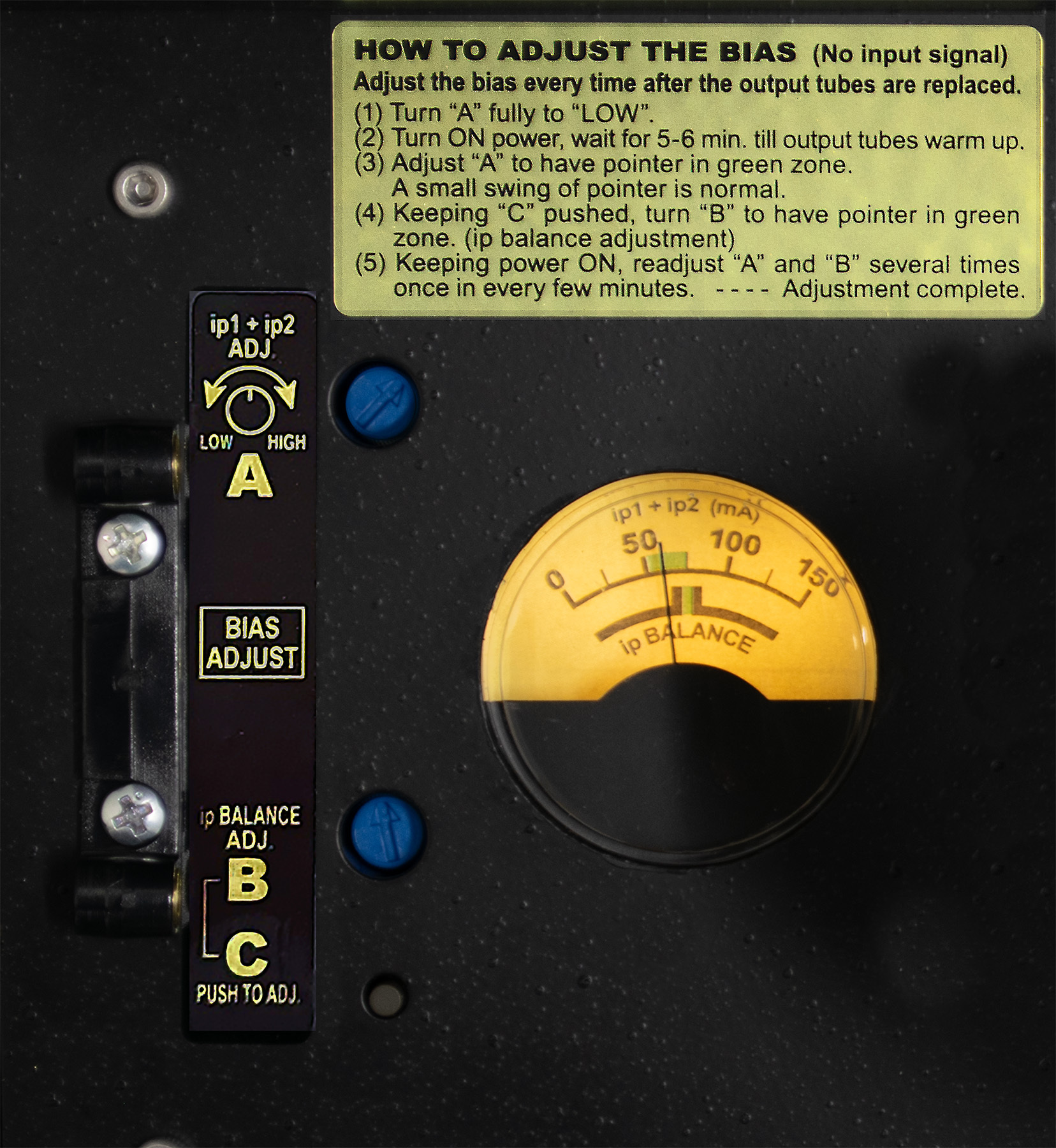

Very simple bias adjustment

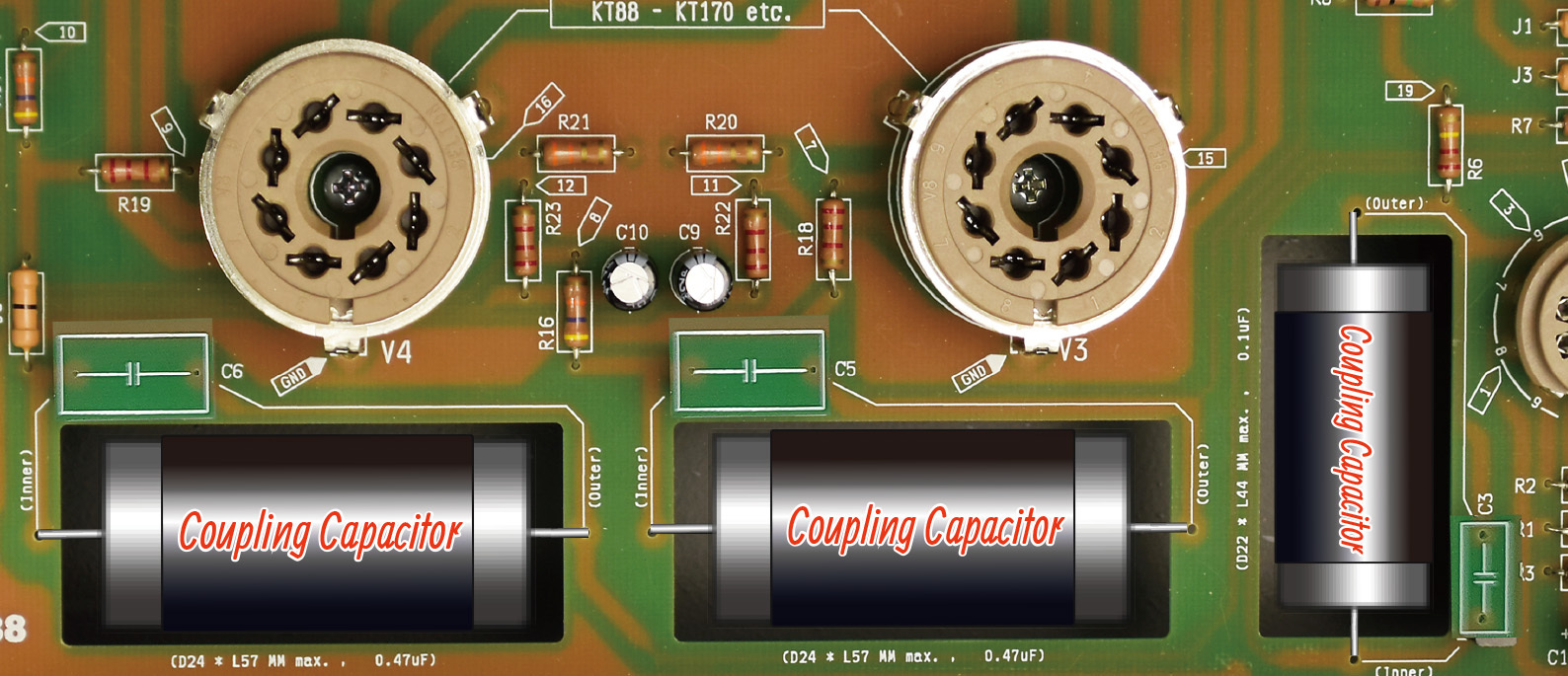

With large coupling capacitors (image)

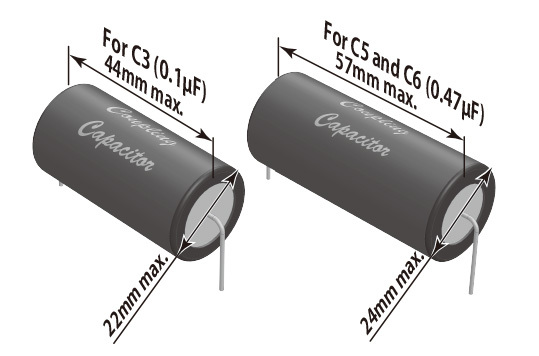

Maximum size of coupling capacitors

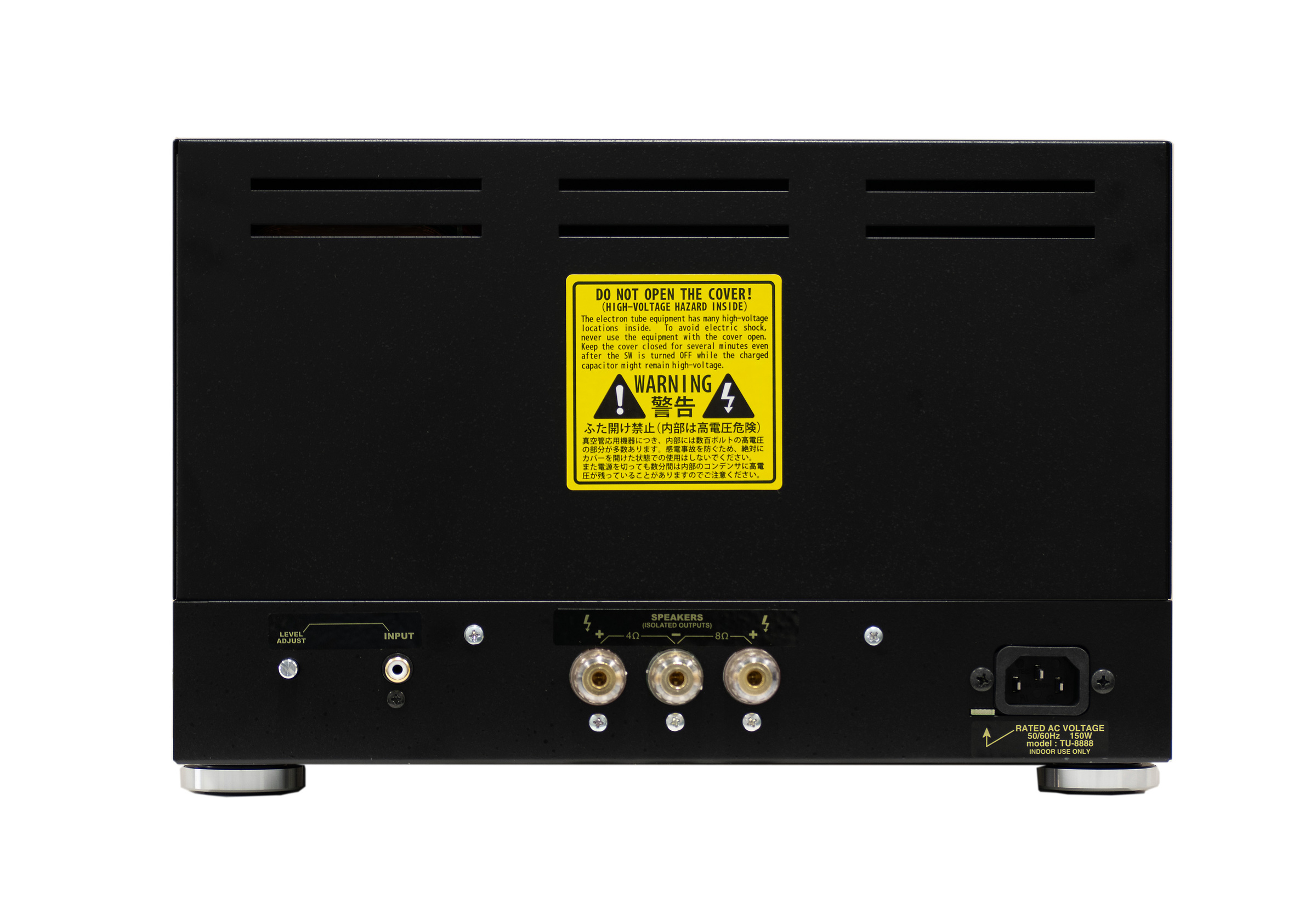

Rear

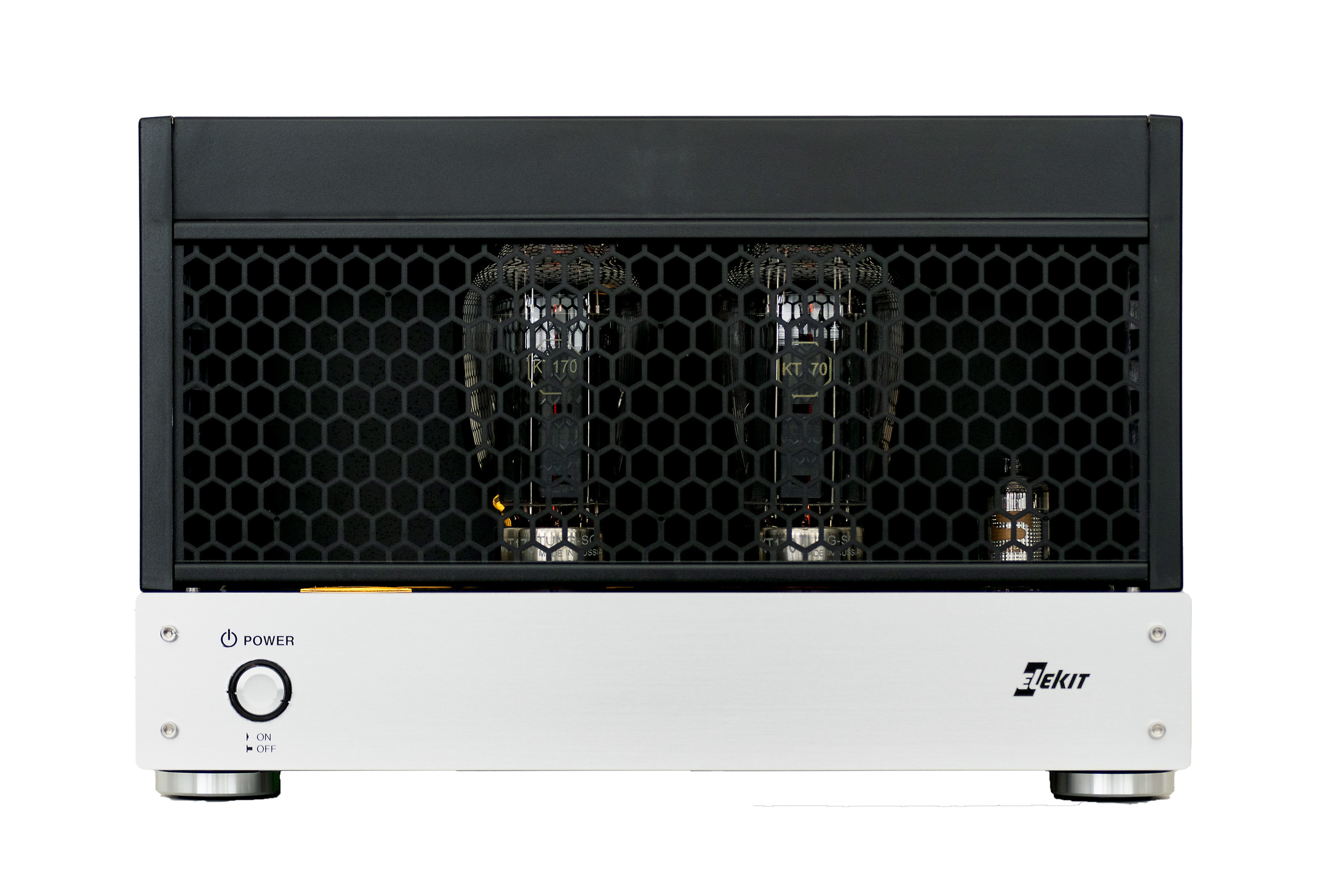

With a safety cover
Model No. : TU-8888
Tubes (not included) : Voltage amplifying tube : 1x EF86(6267), 1xECC82(12AU7, 6189)
Output tube : 2x6550, KT88, KT90, KT120, KT150, KT170, etc. (Prepare a matched pair)
Circuit configurations, etc : Vacuum Tube Monoblock Power Amplifier
Output stage : Class-AB Push-pull, Manual Adjustment Type Fixed Bias
Heater supply : Voltage amplifying tube : DC-glowing, Output tube : AC-glowing
B-power : MOSFET ripple filter
Max. output (8ohm load, THD10%) : 60W (KT150 or KT170) 50W (KT88)
Rated input : 1Vrms (KT150 or KT170) 950mV rms (KT88)
Frequency response (13dB) : 10 - 50,000Hz
Residual noise (IHF-A, 8ohm load) : 50uV rms
Input terminal : 1x RCA jack
Output terminal : 8ohm, 4ohm, Binding terminal (Gold-plated, Banana plug compatibile)
* Both + and - terminals are isolated from the amplifier circuit and chassis ground (SG).
Rated power voltage : 100V AC / 115V AC (110-120V) / 230V AC (220-240V) Selected at assembly, 50/60Hz
IEC standard 3P inlet type
Rated power consumption : 150W (KT170 - rated output), 100W (KT170 - no signal) / 130W (KT88 - rated output), 90W (KT88 - no signal)
Dimensions : W332 x H214 x D308 mm (incl. projections)
Weight : Approx.10.2kg (assembled, excl. tubes and power cord)
