300B SE TUBE AMPLIFIRE KIT [ TU-8600S ]

300B SE TUBE AMPLIFIRE KIT
Model number TU-8600S
Price JPY 118,800 (incl.tax)
[JPY 108,000 (excl.tax)]
SolderingRequired

OUTLINE

TU-8600S is a third generation of TU-8600 series, a 300B single-ended tube amp kit released as a limited production model for 2017 and 2018, ran out so quickly. Receiving many requests from both domestic and oversea markets, we are again reproducing it as a revised version TU-8600S with minimal modification to the parts layout on the PCB from TU-8600R. Limited production, without tubes.


■ New active automatic bias adjustment system
For the 300B tube bias, the power supply is equipped separately,and a ”New active automatic bias” is used where the amp detects plate current and automatically adjust the grid voltage. This design earns TU-8600S the priviledges of both self-bias and fixed bias. In addition, current detecting circuit is moved from the cathode side to the B-power side resulting in even better sound quality.

■ Driving 300B tubes to full power
A very orthodox design is used for the voltage amplifying stage to bring out the outstanding characteristics of the famed 300B tubes. Of special note is that 12AU7(ECC82) is used in parallel for the 2nd stage to drive the 300B tubes to full power- resulting in 200Vp-p without clipping.

■ Tube-friendly design
Warm-up time for directly-heated and indirectly-heated tubes largely differ. In most designs, amp power-up starts heating both the directly heated 300B tubes (fast warm-up) as well as the indirectly-heated 12AU7 and 12AX7 (slower warm-up). In TU-8600S, the 300B tubes are heated after the indirectly-heated tubes have warmed up. A very tube-friendly design that will not overload tubes that have not fully warmed up.

■ Power circuit enhancement
A high efficiency, low magnetic flux leakage R-core is used. The rectifier consists of schottky barrier diodes that require shorter recovery time. This results in a reduction in even negligible noise spikes.
The windings of the power transformer include individual windings for the filament heater(A- Power), high voltage (B-power), and bias to stabilize the Negative Feedback (NFB) circuitry(C-Power).
In addition, all power is stabilized to reduce residual noise as much as possible.

■ Stable NFB circuit for great audio quality
To make the most of the 300B tubes, the characteristics of various parts and circuits, including OPT, have been improved. The NFB is applied to the cathode of the 300B by the third winding of the OPT as well as to the voltage amplifying stage. Consequently, the overall NFB is minimized as well as the chance for the transient response.

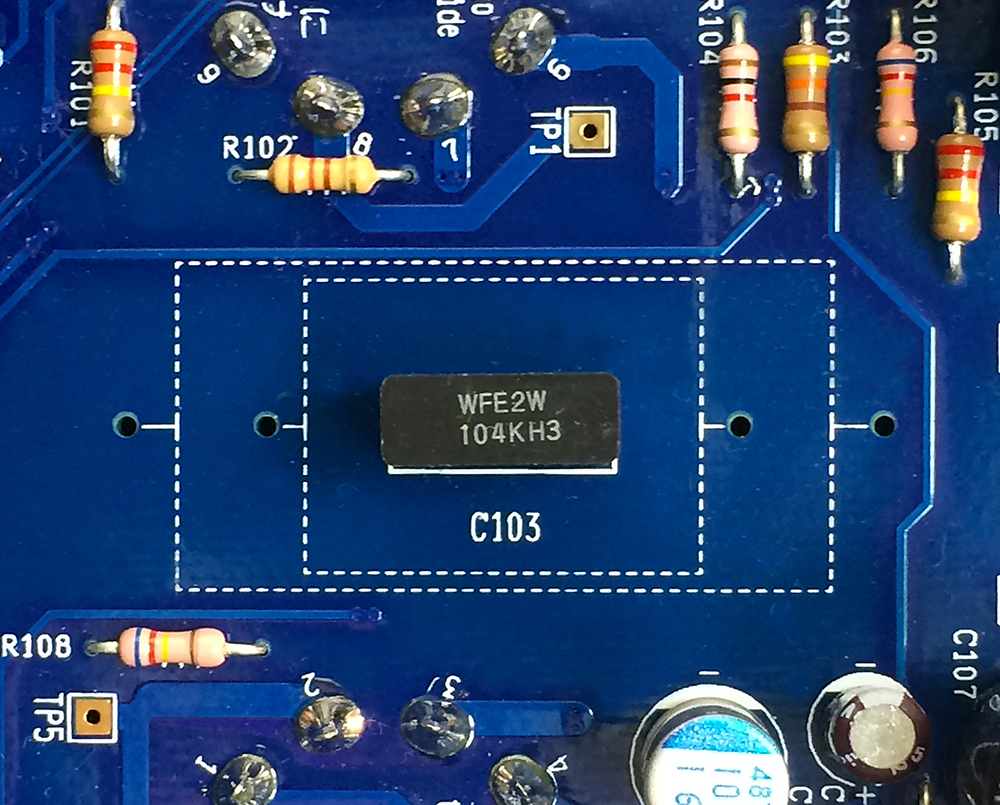

■ Ample space for larger coupling capacitors
Capacitors can have a big effect on sound. TU-8600S uses high quality conductive polymer hybrid electrolytic caps and polypropylene film caps. For those who wish to use other higher quality caps, there is ample space provided on the PCB for mounting larger caps.


■ Output level selection for headphones
The headphone volume settings and the color settings of the power LED can be changed by moving the jumper location on the PCB.


SPECIFICATIONS

●Tubes   : 300Bx2, 12AX7x1, 12AU7x2 * Tubes are not included
●Rated output : 9.2W+9.2W ( THD 10% )
●Rated input : 270mV
●Rsidual noise : 36μV(IHF-A)
●Frequency response : 15Hz-40kHz(-3dB)
●Input impedance : 50kΩ
●Output impedance : 4-6.3Ω, 8-16Ω (Select by the SW on the rear)
●Input terminal : LINE x 1
●Output terminal : Speaker output terminal:Gold-plated screw terminal (Banana plug usable)
         Headphone terminal :6.3mm headphone jack
●Power voltage  : AC115/230V 50/60Hz (3P inlet)
●Power consumption : 90W
●Dimensions : W385xH217xD325mm (incl. projections)
●Weight : Approx.12.8kg (excl. power cable)
