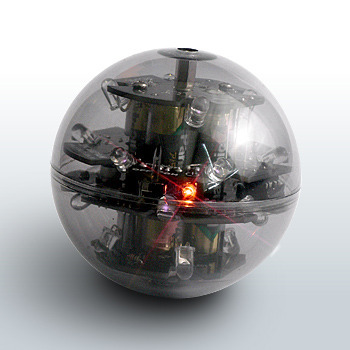

An infrared ball compliant to the new specification of RoboCupJunior soccer completition.
This new IR ball is a significant improvement over existing versions which have been used in RoboCupJunior soccer competitions for many years, and is an answer to the new RoboCupJunior rules and the weaknesses of the current unmodulated IR balls which are susceptible to ambient light and rather quick battery consumption.

The 40kHz carrier output of the ball is modulated with a trapezoidal (stepped) waveform of frequency 1.2kHz. This enables the sensors to easily distinguish the infrared light emitted by the ball from infrared emissions from other sources, and also to estimate the approximate distance to the ball.
The new ball is not only able to operate in this new modulated pulse mode but also in the current unmodulated mode, as well as two other pulse modulation modes for other robot competitions (total of 4 modes available).
For the power indicator, two high-visibility red LEDs are used. They also indicate the battery life at 3 levels by blinking at different speeds.
* A robot soccer ball for RoboCupJunior officially accredited by the RoboCupJunior Technical Committee.
